SL15 1nm Solar Marine Light

The SL15 1nm compact LED light is exceptional value and incorporates some of the most advanced technology available. The SL15 is designed to be maintenance-free and have a service life of over 5 years.

The SL15 can be installed in minutes, and requires no operator intervention. The flash characters are user-adjustable, and the unit is supplied ready for immediate installation.

During daylight hours the solar module will charge the battery, and the lantern will automatically begin operation at dusk – once the ambient light threshold drops sufficiently.

The SL15 features the LED 360° Omnidirectional Reflector, which increases the intensity and uniformity of the horizontal output. The tough polycarbonate lens is specifically designed for use with LEDs, and incorporates an environment-friendly spike – deterring unwelcome bird life.

The unit is sealed using an advanced ultrasonic weld, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).

Optional ON/OFF Switch (SL15-SW) The SL15 is also available with an optional ON/OFF switch for temporary installations such as worksites.

SL60 2nm Solar Marine Light

The SL60 is the world’s most popular and versatile 2nm solar marine light.

Made from tough, durable polycarbonate and using the latest high intensity LED’s, no expense has been spared in the design and development of this lantern.

The SL60 can be installed in minutes, and requires no operator intervention. The flashcharacters are easily adjusted on-site by the user, and the lantern has a permanent ON/OFF switch for easy storage.

During daylight hours the solar module will charge the battery, and the lantern will automatically begin operation at dusk – once the ambient light threshold drops sufficiently.

The SL15, SL60 and SL70 lanterns are the only compact marine lanterns available with a sealed battery compartment, allowing the battery to be replaced after years of service – don’t throw the light away at the end of the battery service life.

The unit is sealed using polycarbonate bonding compounds similar to those used by major automobile manufacturing companies.

SL70 2nm Solar Marine Light (high performance)

The SL70 is exceptional in it’s unique ability to be able to ‘track the sun’ and operate reliably in low sunlight conditions. The SL70 has been proven to operate as a 2-mile compact buoy lantern in various low-sunlight environments such as Britain, Canada, and Europe.

Made from tough, durable polycarbonate and using the latest high intensity LED’s, the SL70 lantern boasts dual high-performance solar modules incorporated into our world-first Solar Collection Lens. These solar modules are angled to obtain maximum sunlight capture, allowing the unit to operate reliably in a range of low sunlight environments.

The SL70 can be installed in minutes, and requires no operator intervention. The flash-characters are easily adjusted on-site by the user, and the lantern has a permanent ON/OFF switch for easy storage.

The sealed battery compartment allows the battery to be replaced after years of service – don’t throw the light away at the end of the battery service life.

The SL70 solar marine light has been awarded the prestigious Australian DesignMark® at the Australian Design Awards; a testament of our commitment to the ongoing development of state-of-the-art products.

Optional RF Communication Synchronization (SL70-CS)
The SL70 is now available with optional short-range RF communication synchronization. Two (2) or more lights can be synchronized to flash in unison via an internal RF module - ideal for rivers, marina entrances, channel marking and aquaculture.

Optional 12 LED Light Configuration (SL70-12)
In high sunlight regions the SL70 may be fitted with 12 LED’s and appropriate intensity settings to provide a range of >3 nautical miles and peak intensity >25cd.

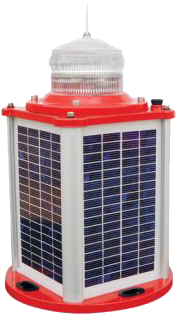

SLC310 Compact 3nm Solar Marine Light

The SLC310 is a robust completely self-contained 3nm Solar LED Marine Lantern designed to fit directly onto existing 200mm OD industry standard mounts.

The unit is made from cast aluminum, subject to 7-stage powder-coating in high visibility IALA colours for daytime recognition. Four (4) premium-grade solar modules are integrated into the assembly, and mounted to collect sunlight at all angles.

The SLC310 is IP68 waterproof - designed specifically to endure a wide range of harsh marine environmental conditions including continual immersion.

The solar array charges an internal 12Ah battery during daylight hours, and at dusk the light will automatically begin operation.

The unit is capable of producing any of 256 IALA recommended flash characters - field-adjustable without the need for ancillary equipment.

The tough polycarbonate lens is specifically designed for use with LEDs, and incorporates an environment-friendly spike - deterring unwelcome bird life.

Optional GPS Synchronization (SLC310-GPS)
The SLC310 is also available with optional GPS synchronization enabling users to clearly mark channels, ports, rivers and entrances, marinas, aquaculture installations and exclusion zones with independent lanterns which flash in synchronization.

When lanterns flash in synchronization, they can be clearly distinguished from other navaids and confusing background lighting.

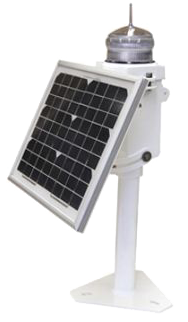

SL23/SL24 3-4nm Self-Contained Lantern Series

The SL23/SL24 and SL23.5/SL24.5 3-4 mile Self Contained Lantern range perform exceptionally well in low sunlight regions, or where heavy duty-cycles or a steady-light is required. The angle of tilt of the solar module is adjustable to maximize solar radiation collection in accordance to latitude. A large number are installed throughout Britain and North America, and the units are ideal for navigation, hazard lighting, perimeter lighting and a range of other applications.

The SL23/SL24 range of units use 20 ultra-high intensity LEDs as a light source, and incorporate a 7.5Ah sealed battery coupled with one 12watt (SL23), two 12watt (SL24), one 5watt (SL23.5), or two 5watt (SL24.5) solar module(s). As with all our lanterns, these units use the LED 360 degree reflector (US Pat. No. 6,667,582 & AU Pat. No. 778,918) which increases the intensity and uniformity of the horizontal output.

These lanterns can be easily set on-site to any of over 250 IALA recommended flash characters, and any of 4 intensity settings. The 20 LED flasher units are interchangeable between lanterns, allowing the operator to replace the flasher unit with another colour at any stage of the product’s life. The battery or lens can be easily replaced after years of service, and the internal components are encased in a large impact-resistant housing.

Once installed, operation of the SL23/SL24 and SL23.5/SL24.5 models require no operator intervention. During daylight hours the solar module(s) will charge the battery through an advanced switch-mode regulator incorporated into the flasher unit. The lantern will automatically begin operation at dusk – once the ambient light threshold drops sufficiently. Coupled with LED technology, and a highly efficient DC/DC converter, these lanterns may provide over 20 days of continuous operation without sunlight (14 hour darkness, 12.5% duty cycle).

SL50/SL52 3-4nm Self-Contained Lantern

The larger 5watt solar module(s) and 4.5Ah battery of the SL50 and SL52 lantern allow the units to operate at high duty cycles, or in lower sunlight regions.

The SL50 and SL52 lanterns have been widely adopted by professionals in the marine sector, including ports and harbors, transport departments, and coast guards.

The SL50 and SL52 lantern use 20 ultra-high intensity LEDs as a light source, and incorporate a 4.5Ah sealed battery and one (SL50) or two (SL52) 5watt solar module(s). As with all our lanterns, the units use the LED 360 degree reflector (US Pat. No. 6,667,582 & AU Pat. No. 778,918) which increases the intensity and uniformity of the horizontal output.

These models are extremely versatile and offer the user enormous flexibility including on-site setting to any of over 250 IALA recommended flash characters, and any of 4 intensity settings. The 20 LED flasher units are interchangeable between lanterns, allowing the operator to replace the flasher unit with another color at any stage of the product’s life. The battery or lens can be easily replaced after years of service, and the internal components are encased in a large high-impact resistant housing.

Once installed, operation of the SL50 and SL52 requires no operator intervention. During daylight hours the solar module(s) will charge the battery through an advanced switch-mode regulator incorporated into the flasher unit. The lantern will automatically begin operation at dusk – once the ambient light threshold drops sufficiently. Coupled with LED technology, and a highly efficient DC/DC converter, the lantern may provide over 10 days of continuous operation without sunlight (14 hour darkness, 12.5% duty cycle).

SL125 5-7nm LED Lantern Series

The SL125 LED marine lantern is maintenance-free and used by some of the busiest ports, and large militaries.

SL125 Technology

The SL125 is the most advanced LED marine lantern on the market. Utilizing the latest software and microcircuitry developments, the lantern boast a huge number of features including flash-memory and the most efficient power conversion available.

The tough LEXAN® polycarbonate lens is specifically designed for use with LEDs, and incorporates an environment-friendly spike- deterring unwelcome bird life. The unit is sealed using polycarbonate bonding compounds similar to those used by major automobile manufacturing companies. This also enables a waterproof rating of IP68- unmatched by other manufacturers.

Lantern Operation

The SL125 is ideal to fit on existing structures, or can be supplied as a complete unit with external solar modules and battery compartment (see SL125C product page).

The large industry-standard base, and 1 metre of included cable allows the SL125 to be readily fitted to any 12 volt power supply.

Once installed, the SL125 requires no operator intervention. The flash characters are easily adjusted on-site by the user, and the lantern will automatically begin operation at dusk- once the ambient light threshold drops sufficiently.

Up to 4 tiers of 36 LEDs are available to increase the light intensity of the SL125 unit.

The SL125-2, SL125-3 and SL125-4 have 72, 108 and 144 LEDs respectively. Each LED tier utilizes the our omnidirectional LED Reflector (US Pat. No. 6,667,582 & AU Pat. No. 778,918) to increase the intensity and uniformity of the horizontal output. Multiple focal points on the lens then create superior divergence specifications to suit regulations worldwide.

Remote monitoring and control capabilities are available from the SL125 lantern allowing the performance of the units to be monitored from remote sites. Systems status including battery condition, flash characters, operational configurations and lantern/buoy position may be monitored through radio and satellite communications.

The SL125 4-Tier lantern utilizes a unique heat-dissipating domed lens to achieve maximum LED intensity output over a wider range of environmental conditions. In addition, each LED array incorporates temperature control mechanisms to ensure maximum operational performance.

SL125/C 5-7nm Complete Lantern Assembly

The SL125/C Complete Lantern Assembly provides a complete solution for visual navigation requirements.

The SL125/C offers unique flexibility, and is available in varying configurations to suit a range of installations and intensity requirements.

The powder-coated 3mm aluminum housing is laser-cut, and robotically folded for guaranteed precision every time.

One or two 20watt solar module(s) are fitted as standard, and the unit can be readily equipped with up to two individual 40watt modules to power longer-range requirements or ancillary equipment.

A modular design, all components of the system are replaceable in the unlikely even of damage to the unit. The battery is accessed through the top of the lantern assembly, via a robust swing-hinge. Access to the user-adjustable flash and intensity settings is also achieved through this design.

The solar modules are extendable to 51 degrees as standard, with the option to increase in equatorial regions.

SL125/C-Type 2 Complete Lantern Assembly

The SL125/C-Type 2 (SL125/C.T2) Complete Lantern Assembly incorporates a larger battery housing to the standard SL125/C Assembly, enabling even greater autonomy particularly in lower sunlight regions.

The SL125/C-Type 2 offers unique flexibility, and is available in varying configurations to suit a range of installations and intensity requirements. The powder-coated 3mm aluminum housing is laser-cut, and robotically folded for guaranteed precision every time.

One or two 40watt solar module(s) are fitted to power longer-range requirements or ancillary equipment, with large 55Ah battery.

A modular design, all components of the system are replaceable in the unlikely event of damage to the unit. The battery is accessed through the top of the lantern assembly, via a robust swing-hinge.

Access to the user-adjustable flash and intensity settings is also achieved through this design.

The solar modules are extendable to 51 degrees as standard, with the option to increase in equatorial regions.

SL125-GPS Synchronized LED Lantern Series

Utilizing latest advancements in GPS technology, We have developed an internal synchronization system for the popular SL125 5-7nm range of lanterns.

The SL125-GPS lantern provides the user with the ability to mark a channel, port or river with independently operating lanterns that all flash in synchronization. This presents a clear outline of the channel each time the lanterns flash, and is particularly effective in overcoming background lighting.

With advances in electronics, we have been able to produce a light that incorporates a Global Positioning System (GPS) receiver. No additional power supplies, aerials or control systems are required. The SL125-GPS is a microprocessor-based system that has been designed to provide maximum reliability and performance of the beacon over a wide range of environmental conditions.

Using overhead satellites, multiply SL125 units set to the same flash pattern will synchronize anywhere in the world.

SeaFlare Technology™

The inbuilt GPS receiver and advanced software of the our synchronized lanterns allow for the adoption of SeaFlare channel marking - a unique system that cascades the synchronization of channel lanterns in a uni or bi-directional flash pattern.

In Australia, the Port of Melbourne Corporation has adopted this technology to clearly identify the channel leading into Station Pier- an area that regularly accommodates some of the world's largest passenger vessels including the QE2.

The neighboring Port of Geelong utilize this technology to safely guide Afromax Tankers among other large sized vessels into harbor.

How does it work?

Synchronization is achieved using an internal algorithm based on the highly accurate time base and time data received from the satellites. The satellite data is provided from a number of earth stations using atomic clocks as the time base.

At power-up the microprocessor checks that the internal GPS module is programmed correctly and is able to provide valid time base and time data.

The light then checks for day/night. If it is daylight the internal microprocessor will go to idle mode after approximately 10 seconds. This reduces the overall power consumption when the light is not required.

• Each light operates independently and requires no operator intervention
• Three (3) satellites need to be in view for the built-in GPS receiver to collect time data
• At dusk the light sensor will turn the light on. If time data is available the light will come on synchronized to every light with the same selected flash code

SL-CGC 60W Class 'C' Solar LED Lantern

The SL-CGC 60W is a United States Coast Guard Approved Class 'C' structure lantern, specifically designed to meet the needs of Class 'C' structures in the Gulf of Mexico.

The unit is completely self-contained with an integrated solar/battery system, and can be easily installed in minutes. The flash characters are adjustable on-site by the user, and the lantern has a permanent ON/OFF storage switch.

During daylight hours the solar module charges the battery, and the lantern will automatically begin operation at dusk.

The SL-CGC 60W's large 16Ah battery enables greater than 45 days autonomy. The battery is housed in a sealed compartment (IP68 waterproof) allowing for replacement after years of maintenance-free service.

The IP68 waterproof seal connector and momentary switch on the lantern enable maintenance personnel to simply connect a test lead to diagnose the battery voltage and solar charging rate, in accordance to maintenance contracts.

The SL-CGC 60W-S is a synchronized version of the standard lantern. The installer simply connects the lanterns using a hard-wired connection to maintain synchronized flash patterns as required on multiple lantern installations.

SL-CGB 1251W Class 'B' LED Lantern

The SL-CGB 1251W is a United States Coast Guard approved Class ‘B’ structure lantern specifically designed to meet the needs of Class ‘B’ structures.

The SL-CGB 1251W boasts a huge number of features including flash-memory and the most efficient power conversion available. The light utilizes 36 LEDs as a light source, enhanced by our LED lens and omnidirectional LED reflector (US Pat. No. 6,667,582. AU Pat. No. 778,918) to gain optimum LED performance.

The unit is supplied with a 1mtr pigtail for 12v power input, and is ideal to fit on existing structures or can be supplied as a complete unit with external solar modules and battery compartment.

This lantern is available in a hard-wired or GPS synch version for multiple lantern installations (SL-CGB 1251W-S or SL-CGB 1251W-GPS).

SL-CGA 1252W Class 'A' LED Lantern

The SL-CGA 1252W is a United States Coast Guard approved Class ‘A’ structure lantern specifically designed to meet the needs of Class ‘A’ structures in the Gulf of Mexico.

The lantern utilizes 72 LEDs as a light source, enhanced by our LED lens and omnidirectional LED reflector (US Pat. No. 6,667,582. AU Pat. No. 778,918) to gain optimum LED performance.

The SL-CGA 1252W is one of the most advanced LED marine lanterns on the market. Utilizing the latest software and micro circuitry developments, the lantern boasts a huge number of features including flash-memory and the most efficient power conversion available.

This lantern is available in a hard-wired or GPS synch version for multiple lantern installations (SL-CGA 1252W-S or SL-CGA 1252-GPS).

GSM Cell-Phone Monitoring & Alarm System

Our cost effective GSM Cell-Phone Monitoring and Alarm System provides users with the ability to efficiently monitor the status of their AtoN installations via real-rime data from anywhere in the world.

This advanced GSM system (Global System for Mobile Communication) can be internally integrated into a range of our lanterns with no external aerials or base station required. Users simply monitor the status of their installations using a cellular telephone and/or secure web portal access.

Sealite lanterns fitted with the GSM Cell-Phone System have an internally integrated Motorola® cell-phone module and Sealite proprietary software to enable data transfer between the lantern and designated user’s cell-phone (via SMS message) or PC web interface.

Maintenance personnel simply send an SMS message to the designated Sealite GSM lantern cell-phone number, and then receive an automatic SMS reply detailing the various pre-set operational conditions. In addition, various alarm conditions can also be activated such as tracking a drifting buoy via GPS that has moved outside a designated area (if mooring is broken etc) or alerting to a potential power disruption.

Sealite’s innovative GSM system may also be setup to regularly report lantern conditions to a secure user-login portal area of the Sealite website. This provides details of the GSM lanterns operational status, in an easy-to-read PC interface, such as historical graphed data, GPS positioning viewed via internet mapping systems, and day-to-day operational information about each individual lantern over the period of it’s service life.

Each lantern is fitted with it’s own SIM card, which provides a designated cell-phone contact number for each individual lantern. Any network operator can be used providing they have GSM coverage.
