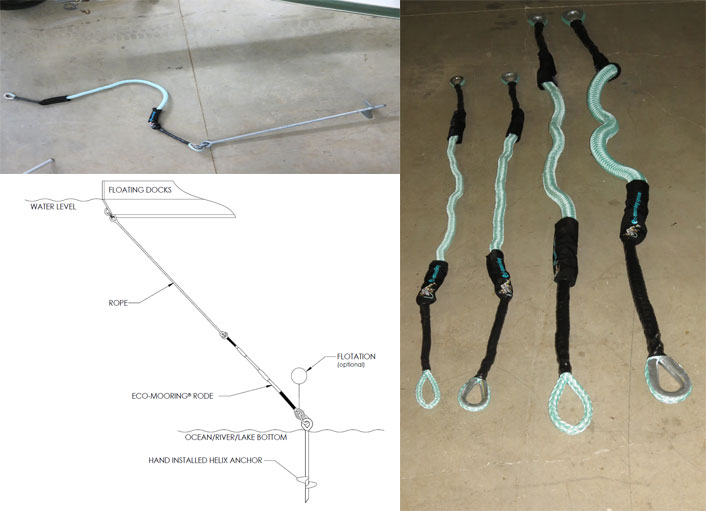

Eco MooringsThe revolutionary Eco-Mooring Rode adds exceptional strength & elasticity throughout the mooring system while protecting the fragile marine environment from harmful bottom chain scouring of sensitive marine habitats.

We manufacture these rodes in our facility in Milford, NH using only the best material and professionally trained staff. We can make them in the following rope diameters: 5/8", 3/4", 1" and 1 5/16" regularly but can custom make any size or length. We have the ability to build elastic ropes to withstand, up to 110,000 lbs of breaking strength!

Read More...

Download Brochure


Hazelett Elastic Rodes:

Docks and wave attenuators anchored with Hazelett Elastic Rodes (or a combination of elastic rodes and chain) are tensioned at low tide, so they stay put at low tide. As the tide rises, the elastics stretch. Docks and wave attenuators secured with Hazelett Elastic Rodes have a more gentle motion, reduced point loads, and are easier to walk on in rough weather.

In contrast docks and wave attenuators anchored with chains tensioned at high tide will wander at low tide when the chain becomes slack. When wind and waves build, chain-anchored structures will jerk violently as the chain becomes taut. Peak loads at the windward chain-to-dock connections can cause them to fail.

Hazelett Elastic RodesHazelett Elastic Rodes

Download Brochure


SuperFlex Dock/ Pontoon Mooring System:

SUPERFLEX Synthetic rubber bar D26mm SB0425 rubber bar is made by Synthetic Complex Rubbers CR, EPDM, IIR, NR, SBR,.. mixed with Kevlar & UHMPE fibers & anti-flex cracking agent, antioxidant,…& other Nano chemical materials in the rubber rope, each rubber rope strand & each set include with 2 side #316 Stainless steel connecting rod, plate lock by 316 stainless steel or Titanium Aluminum alloy AL7075 bolts, and one 5 tons(49KN)up safety limited Polyester rope, the SUPERFLEX SP0425 each strand rubber rope length is minimum able elongate with 1.7 time length of rubber bar rope length of 2.5 meter.

SB Synthetic rubber bar must installation & work in the water temperature between -40 C° to + 40 C°.
SB0425 rubber bar is 4 strands with 2.5 meters/ per unit set
SB0425 rubber bar /set overall length >=………………………..…………………………….. 2500 mm
SB0425 rubber bar /set Connectors Head Diameter >=……………………………………….. 125 mm
SB0425 rubber bar /set total weight (including rubber & metal & safety rope) >=…………... 8 kg
SB0425 rubber bar / each unit set Minimum Elongation ability >=…………………….……..…70 %
SB0425 rubber bar under 70% elongation minimum with 75,000 cycle (=> 100 years tidal cycle)

****Other configurations can be engineered to meet your specifications****

SuperFlex Dock/ Pontoon Mooring SystemSuperFlex Dock/ Pontoon Mooring System

Download Brochure
